V velocity ftmin fts q volume flow ft 3 s ft 3 min d pipe inside diameter ft q gpm volume flow US galmin gpm d in pipe inside diameter inches Online Pipe Velocity Calculator - Imperial Units. Ensure the proper cable size given acceptable loss voltage and amps.

Euroden On Twitter Control Systems Engineering Process Control Electrical Engineering Projects

Pipe Flow Calculator Engineering Toolbox.

Pipe flow calculator engineering toolbox. Default values are from the example above. Q A v 0098 m 2 21 ms 020 m 3 s. The programs contained in the Toolbox are designed to solve many of the design problems associated with sanitary sewer lines.

We then apply the Hazen-Williams equation. Typical fluid flow velocities for common liquids gases and vapors. Electrical units amps and electrical wiring wire gauge and AWG electrical formulas and motors Environment.

Cable Sizing and Length. New tools are added regularly. NCPI Toolbox is a group of three NCPI-developed programs that provide engineers tools for calculating Trench Load Hydraulic Flow and Leastcost.

Climate meteorology sun wind and environmental resources Fluid Mechanics. Related Mobile App from The Engineering ToolBox. Volume flow ft 3 s ft 3 min pipe inside diameter ft download schedule 40 steel pipe velocity diagram as pdf file.

The study of fluids - liquids and gases. Steam Pipes - Sizing. The Gravity Flow Calculator is based on the equations and the example above above.

Electrical Engineering Equipment Fabrication Quality News Piping Valves All Calculators Tools. Or determine how far a particular cable can be run given acceptable loss voltage and amps. Hazen-Williams formula for a full pipe.

The design concept is a set of small and medium sized calculation tools which can be accessed over the internet. Calculating the amount of steam in non-flow batch and continuous flow heating processes. Convert between volume flow units - gpm litersec cfm m 3 h - an online flow unit calculator.

Hazen-Williams Equation - calculating Head. This line represents the full capacity of the regulator. Diameter of pipe m ft Slope mm ftft n 10 for SI units 1486 for.

Gravity-fed pipe flow - Hazen-Williams formula for a full pipe. L - pipe or. Water Pipes Head Loss Calculator App - free apps for offline use on mobile devices.

Calculate the percent of area inside of a conduit that can. Use this pipe flow calculator to analyse the properties of water flowing in a gravity-fed system. Thrust block forces on pipe bends anchor due to liquid velocity and internal pressure - online resulting force calculator.

Pipe sizing steam systems - major and minor loss in steam distribution systems. About The Pipeng Toolbox. Calculate pressure drops in steam distribution pipe lines.

The Pipeng website was started as a hobby in 2000 and has expanded from there. You can access the tools from any computer connected to the internet. Engineering index Civil Engineering index.

V 1273 q d 2 04084 q gpm d in 2 1 where. 156 laminar flow. Bernoulli pitot tube pipe leak pipe expansioncontraction Bypass loop Discharge from a tank steady state Fire hydrant Force due to pipe bend Liquid leak rate from pipe crack.

Civil Engineering online calculation. Free online Process Engineering Handbook. Calculate ASME B311 power piping steam mass flow rate for pressure relief valves headers and vents.

For pressure relief valves the mass flow rate can be calculated for isentropic or isothermal flow. Volume flow US galmin gpm. If the ambient pressure is less than the critical pressure the flow is.

The volume flow can be calculated from 3 as. Process Engineers Tools has selected here all the key knowledge Engineers working with fluid flow fluid dynamics need to solve industrial problems or simply get a handy reminder when required. Choked flow of gas from tank through pipe Gas leak rate through hole Rayleigh flow compressible with heat transfer but frictionless Specialty Programs.

Pipe Flow Calculator Engineering Toolbox Apps sponsored links air duct flow air duct velocity air flow head loss beam supports capture air velocity compressed air pipe lines. Its valid for half filled circular pipe. Q 0442 c d263 pl054 with units as given above to calculate the water flow rates for pvc pipe with diameters from 12 inch to 6 inches and length from 5 ft to 100 ft all for a pressure difference of 20 psi across the.

The calculators below can used to calculate the specific head loss head loss per 100 ft m pipe and the actual head loss for the actual length of pipe. Thermal expansion of steam pipes heated from room temperature. You can view and modify all these parameters area perimeter hydraulic radius in the advanced mode of this pipe flow calculator.

Engineering ToolBox - Resources Tools and Basic Information for Engineering and Design of Technical Applications. - search is the most efficient way to navigate the Engineering ToolBox. Engineering economics - cash flow diagrams present value discount rates internal rates of return - IRR income taxes inflation Electrical.

Online Calculations For Pipeline And Piping Engineers. The CivilWeb Pipe Flow Calculator spreadsheet is an advanced drainage design and analysis spreadsheet which can calculate the flow rate through a drainage pipe using either the Colebrook-White equation or the Manning Equation. Fluid Velocities common in Pipes.

Flow Units Converter. Online Hazens-Williams Calculator Imperial Units. My Engineering Tools has developed free Excel calculation tools that can be downloaded.

You only need to know the diameter of the pipe the material its made of its length and the drop in height. Bookmark the page for future reference. Gravity Flow Calculator - Half Filled Circular Pipe.

The spreadsheet includes unique design features to make detailed drainage pipe design quicker and easier than ever. Those calculation tools cover key calculations that Engineers have to do all along their work and career. Pressure loss in piping systems by using the Equivalent Pipe Length Method.

Fluid flow velocity in a circular pipe can be calculated with Imperial or American units as. Steam Pipes - Thermal Expansion. The pressure relief valve is assumed to exit directly to ambient pressure.

The gravitational flow form of the Hazen-Williams equation is calculated to provide water velocity and discharge rate that can be achieved through a pipe with provided. Steam Pipe - Online Pressure drop Calculator.

Properties Of Saturated Steam

Https Www Control Specialties Com Fileuploader Download Download D 0 File Custom 2fupload 2ffile 1467380123 Pdf

Pin On Ingenieria Civil

Vacuum Pipe Lines Pressure Drops

Water Discharge Volume Flow Through Hose

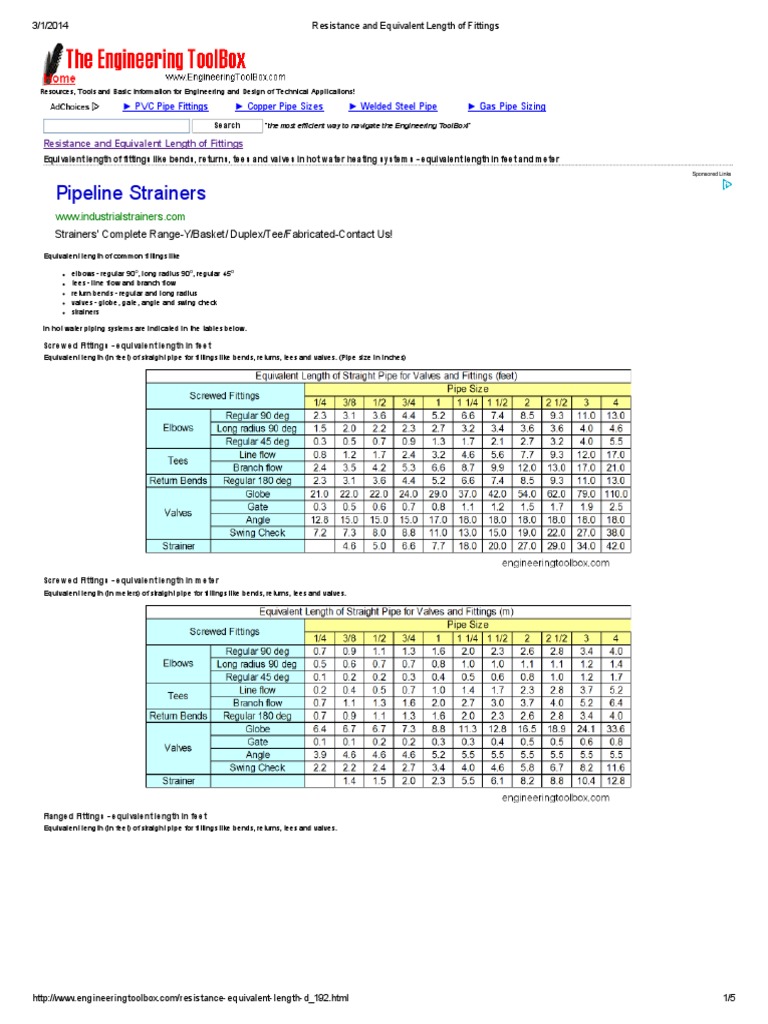

Resistance And Equivalent Length Of Fittings Pipe Fluid Conveyance Sketch Up

System Curve And Pump Performance Curve Pumps Centrifugal Pump System

Pipe Flow Question Pipelines Piping And Fluid Mechanics Engineering Eng Tips

Water Flow Delivery Velocity

Vertical Pipes Discharge Flow Vs Height Of Discharge Flow

Horizontal Pipes Discharge Flow Vs Length Of Discharge Flow

1 Dissolved Oxygen In Fresh Water At Atmospheric Pressure The Download Scientific Diagram

Vertical Pipes Discharge Flow Vs Height Of Discharge Flow

Plumbing System Maximum Flow Rate Into Building Bathrooms Other Locations That Need Water These Are The Following Locations In The Building That Will Need Both Water And Sewer Supply 2 Bathrooms By Shipping Office 2 Bathrooms By Offices 1 Kitchen

Calculate Differential Pressure Sensed By Level Transmitter Process Control Transmitter Petroleum Engineering

Pin On Mechanical Engineering

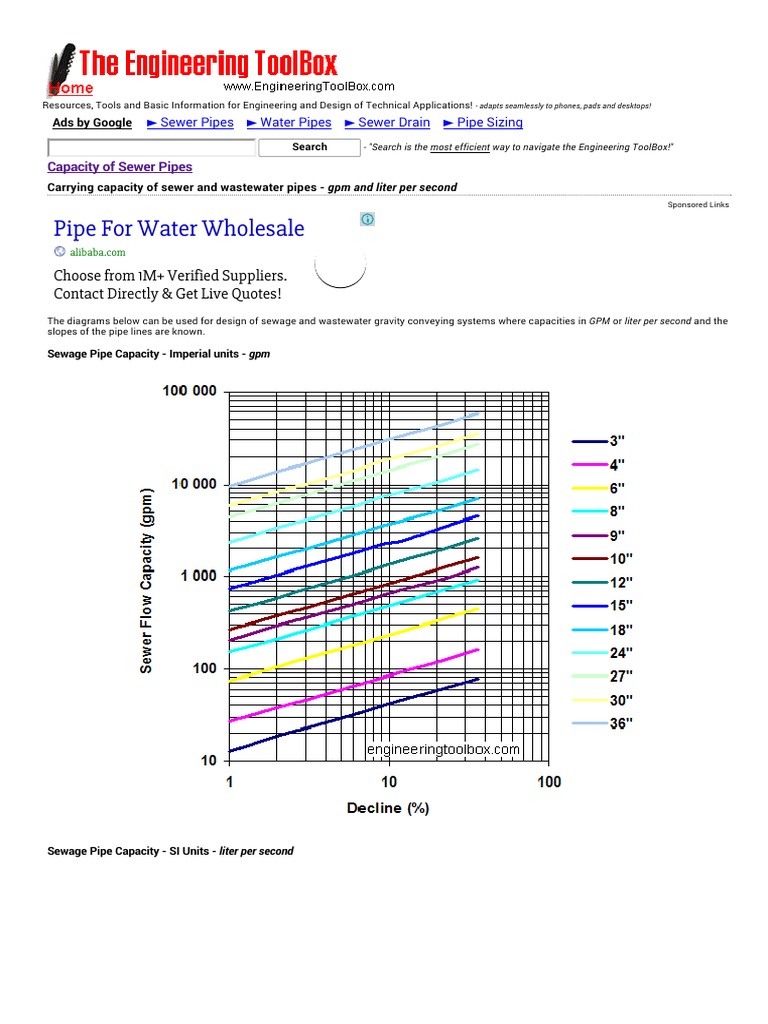

Capacity Of Sewer Pipes Sanitary Sewer Sketch Up
